Product Description

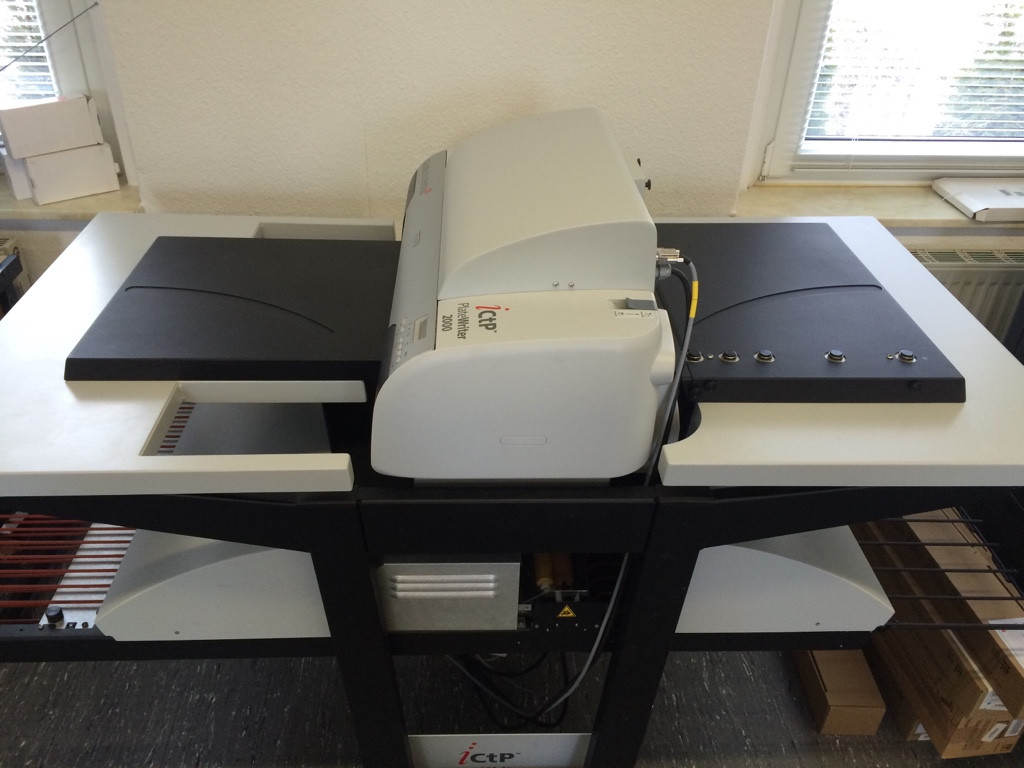

We are pleased to present this 2016 Glunz & Jensen Plate writer 2000 coming out of college in plant print shop condition is excellent.

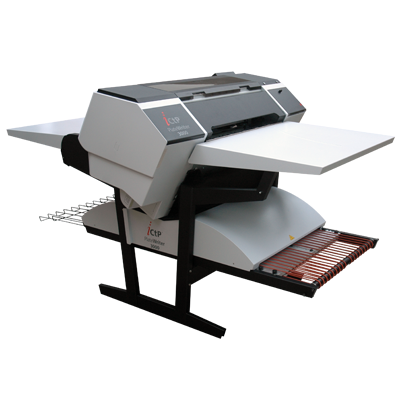

The PlateWriter™ 2000 is the second generation of Glunz & Jensen’s acclaimed iCtP range of Computer-to-Plate systems, which produce press-ready aluminum plates without the use of chemical processing.
Setting new standards in cost flexibility and speed, the PlateWriter™produces digital CtP plates, which deliver accurate registration and high quality for small to medium format offset printers.
Certified Installation and Training Available
| Imaging | |
| Market position | Low volume and speed |
| Imaging technology | 8 x 180 Ultra high definition imaging array (1440 dual density nozzles delivering up to 2880 dpi) |
| Imaging resolution | 1440 x 1440 dpi or 2880 x 2880 dpi |
| Imaging fluid | Patented Liquid Dot™ technology |
| Plate types | Standard aluminium iPlates |
| Plate thickness | 0.15-0.2 mm (0.006-0.008”) |
| Plate width (max) | 459 mm (18") |
| Plate length | 274-610 mm (10.8-24”) |
| Max imaging size (WxL) | 432 x 593 mm (17 x 23.3”) |
| Plate registration | Low friction bearing mounted sidebar register |
| Imaging speed | 8:32 min/plate (400 x 511 mm / 15.7 x 20.1”) |
| Green credentials | |
| Chemistry consumption | None (Inkjet based system) |
| Water consumption | None required |
| Power consumption (stand-by) | 0.06 kW (200 BTU/hour) |
| Power consumption (average) | 0.4 kW (1,445 BTU/hour) based on 200 plates/month |
| General | |
| Dimensions (LxWxH) | 1942 x 884 x 1182 mm (76.4 x 34.8 x 46.5”) |
| Weight | 165 kg (363 lbs) |
