Product Description

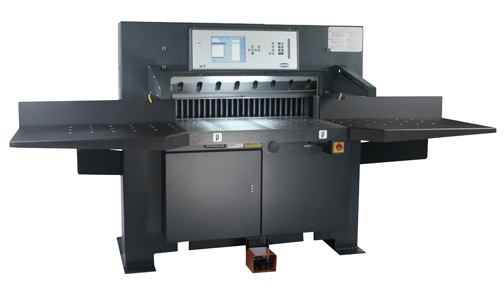

Challenge Champion 370 XT Paper Cutter
The Challenge Champion 370 XG continues our well known excellence for innovation, reliability and durability. The cast iron arch, base, and table are at its’ foundation. UHMW gib surfaces and composite bushings require virtually no maintenance for years of trouble-free operation. Standard features such as power soft clamp, air table, digital hand wheel, and automatic false clamp detection reduce operator fatigue and maximize productivity.
The Champion 370 meets the toughest safety standards in the industry today. Category 4 light safety curtains, enclosed rear table, two-hand timed non-repeat cut buttons, and a knife safety latch contribute to our UL and CE certification.
The intuitive menu-driven controller allows variable mode data entry with up to 99 jobs / 9,801 total cut position storage. Advanced label cutting and the sheet division assistant allows for even the most novice operator to program complex jobs. Industry-leading electronic clamp pressure control can be programmed per cut within a job – minimizing waste. Machine self-diagnostics and error indication walk the operator through any difficulties.
Proudly manufactured in the USA, the Champion 370 continues our legacy of providing… assurance you made the right decision.
Up to 24 cuts per minute
Virtually maintenance-free design
Fully-adjustable knife bar gibs (front and rear)
Electronically-adjustable and programmable clamp pressure
Low-pressure pre-clamping protects operator from injury (less than 66 PSI)
Certified Installation and Training Available
FEATURES:
- 37" Cutting Width, 5-1/8" Clamp Opening
- Hydraulic Clamping & Cutting
- Adjustable Clamp Pressure
- Manual Foot Pedal Clamping
- Backgauge Position Indicator
- Line-Light Cut Position Indicator
- Lighted Work Surface
- False Clamp Plate
- Cast Iron and Steel Construction
- Menu-Driven LCD Data Screen
- Visually-Cued LCD Graphic Screen
- Electronic Clamp Pressure Control
- Alpha/Numeric Electronic Keypad
- Variable Mode Data Entry
- 99 Channel, 9,801 Total Cut Memory
- Non-Volatile Memory
- Program Lockout
- Variable-Speed Pinpoint Backgauge Control
Computer Diagnostics Champion 370 XT: same as above PLUS:
- 10.4" Diagonal Flat Color Touch-Screen Display
- 47,000 Total Cut Memory
- Touch-Screen Activated Graphic Programming
- Windows-based Upgradeable Software
- USB Port for additional program storage onto memory sticks
Champion 305 & 370 Product Literature: Champion_305_370.pdf
Champion 370 XG & XT Operator's Manual: F.370-B-O.pdf
