Product Description

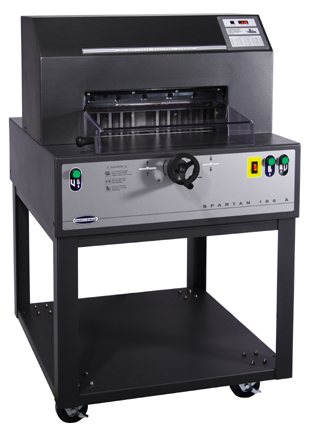

Challenge Spartan 185 Paper Cutter

The SPARTAN 185 Table-top paper cutter provides an economical solution for lower volume cutting environments such as professional offices, copy centers, in-plant printers, and on-demand digital print providers. Capitalizing on Challenge’s time-proven expertise in manufacturing paper cutters, the SPARTAN 185 is engineered and manufactured to the highest of safety standards available.

Features and Benefits

Electric Powered Cutting – 1-1/2HP gear drive motor.

Laser Red LED Cut Line Light - produces a bright easy to see cut line.

Safe - two-hand push button controls and front and rear table safety shields.

Auto-Releasing Front Safety Shield - automatically pops open after each cut cycle is completed. This unique benefit eliminates the need for the operator to manually lift the front shield in order to retrieve or adjust the stock after a cut providing increased productivity and operator ease-of-use.

Heavy-Duty steel, cast iron, and cast aluminum construction gives the cutter "Challenge" durability.

UHMW Gibs on front and back of knife bar require zero maintenance and have lifetime durability.

Eliminates lubricant on knife bar that can spoil stock.

Maintenance Free – the LED cut-line light and UHMW Gibs result in the SPARTAN 185 being virtually maintenance-free with lifetime durability.

Spartan 185 SA Model (Semi-Automatic)

Manual Clamping – hand-wheel operation.

Manual Backgauge Control – hand-wheel control.

LED Digital Backgauge Position Indicator with ±0.01” (±0.1mm) backgauge accuracy - provides for easier operator interface, higher productivity, and easier repeatable accuracy than a hard to read indicator on a scale as is used with other brands.

Spartan 185 A Model (Automatic)

Electric Powered Clamping – generates over 3,000 lbs. (1,360 kg) of clamping force.

Independent clamping function for “clamp only” operation.

Manual Backgauge Control – hand-wheel control.

LED Digital Backgauge Position Indicator with ±0.01” (±0.1mm) backgauge accuracy - provides for easier operator interface, higher productivity, and easier repeatable accuracy than a hard to read indicator on a scale as is used with other brands.

Spartan 185 AEP Model (Programmable)

Electric Powered Clamping – generates over 3,000 lbs. (1,360 kg) of clamping force.

Electric Powered Backgauge - controlled by the control console or hand-wheel for micro adjustments.

3” Lighted LCD Display

Programmable – operator friendly software uses soft key menu prompts for simple programming.

Program Memory – 20 programs, 20 cuts per program.

Automatic Pushout Safety Feature – backgauge automatically pushes stock out from under the clamping area before moving to a longer cut dimension.

SPECIFICATIONS

Cutting Width: 18-1/2” / 47cm

Clamp Opening: 3” / 7.6 cm

Minimum Cut: 1” / 2.5 cm

Maximum Cut: 17-1/2” / 44.5 cm

Table Space In Front of Knife: 13” / 33 cm

Overall Height: 52-3/4” / 134 cm

Overall Width: 32-1/4” / 82 cm

Overall Length: 41” / 104 cm

Shipping Weight (approximate): 700 lbs. / 318 kg

120 Volt AC, Single Phase, 60 Hz, Service Size: 20Amps
